CATEGORY:

POWER DISTRIBUTION AND CONTROL

FUJI-E Products

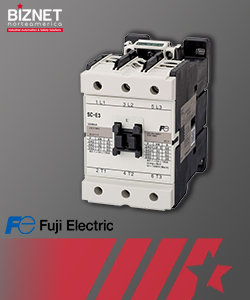

CONTACTORES Y RELÉS DE DE SOBRECARGA TÉRMICA

CONTACTORS AND THERMAL OVERLOAD RELAYS

Fuji Electric offers the SK Series Mini Contactors, which is up to 5HP at 480VAC, the SC-E Series Contactors, up to 100HP at 480VAC, and their associated thermal overload relays; the TK12 Series and TK-E Series, respectively. Our flagship contactor lines, The Orange Line and Odyssey Series Contactors are also available. The Orange Line Series is available up to 10HP at 480VAC, while the Odyssey series is available up to 300HP at 480VAC. The Orange Line/Odyssey Series’ features the electrically-controlled Super Magnet operation, leading to a no unstable zone. The unstable zone is where chattering, contact welding, or coil burning often occurs. The Super Magnet accepts either AC or DC coil control voltage.

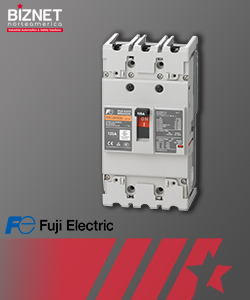

Disyuntores de caja moldeada

MOLDED CASE CIRCUIT BREAKERS (MCCB)

Fuji Electric offers the UL489 MCCB GLOBAL-TWIN (G-TWIN) Series, providing the ultimate compact design, value, and use anywhere in the world. It’s more compact than any breaker on the market, so control panels take up less space. It has a rated current of 3-800A, Max 600V. We also offer the new UL489 MCCB G-TWIN (Lambda) Series, with a compact design, an SCCR rating of 18kA@240VAC, and a variety of accessories. It has a rated current ranging from 3-50A, at 240VAC. Both MCCB series conform to all main worldwide standards, including UL/cUL/IEC/CE Marking/JIS.

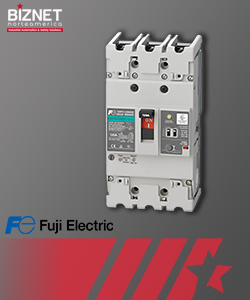

Disyuntores de guga a tierra

EARTH LEAKAGE CIRCUIT BREAKERS (ELCB)

Fuji Electric offers the new UL489 ELCB G-TWIN (Lambda) Series boasts a higher performance and a compact design; optimal for semiconductor equipment. A dedicated 2Pole ELCB with the dimension width of 36mm (3Pole = 54mm width) has also been achieved. It has the rated current ranging from 5-50A, at 240VAC. We also offer the UL489 ELCB GLOBAL-TWIN (G-TWIN) Series, providing superior performance at the smallest dimensions and has a reduced overall panel size. It has a rated current of 3 – 630A, Max 600V. Both of the ELCB series conform to all main worldwide standards, including UL/cUL/IEC/CE Marking/JIS.

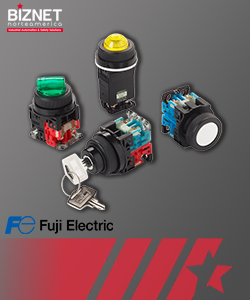

INTERRUPTORES PULSADORES Y LUCES PILOTO

PUSHBUTTON SWITCHES & PILOT LIGHTS

The AH164, AH165 and AH165-2 switches are very compact (16mm), highly reliable, short depth, bright, long-life lamps, finger-size pushbuttons come in various types and colors. The new AR22 and DR22 switches provide improved usability, such as easier mounting and reduced size (22/25mm). The new AR30 and DR30 switches (30mm) provide various improvements in usability, including quick-replacement contact blocks. All switches are UL, CSA, and TUV approved.

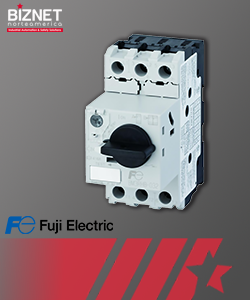

ARRANCADORES DE MOTOR MANUALES

MANUAL MOTOR STARTERS (MMS)

The BM3 Motor Starter Series has circuit breaker and overload relay functions that meet cUL listed group installation regulations of the national electrical code and reduces the number of circuit breakers or fuses in your motor control panel. Fuji Electrics’ MMS can be combined with the SC-E series contactor for a combination starter. Fuji’s MMS type E and F are cUL listed as self-protected combination controllers and replace a UL489 circuit breaker or fuse in a motor branch circuit.
