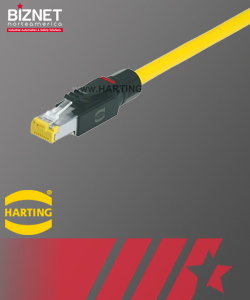

INDUSTRIAL ETHERNET RJ

Connectors Cable connector PROFINET, Straight

• IDC termination

• Rated current: 1.75A

• Contacts: 8

• Copper alloy

• Material: Polyamide (PA)

• Degree of protection: IP20

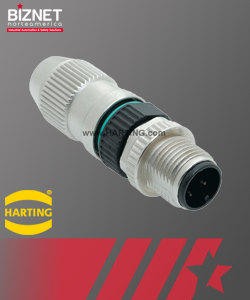

M12

• Cable connector

• Straight

• Macho.

• Male

• A-coding

• HARAX® connection technology

• Polyamide (PA)

• Contacts: 4

• Brass Au over Ni Mating side

• Conductor cross-section: 0.14 ... 0.34 mm²

• Rated current: ‌4 A

• Polyamide (PA), Zinc die-cast

• Screw locking

• Degree of protection: IP65 / IP67 mated condition

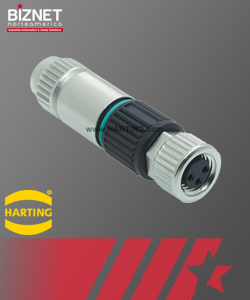

M8

• Cable connector

• Straight

• Female

• A-coding

• HARAX® connection technology

• Polyamide (PA)

• Contacts: 3

• Copper alloy Au over Ni Mating side

• Conductor cross-section: 0.14 ... 0.34 mm²

• Rated current: ‌4 A

• Polyamide (PA), Zinc die-cast

• Screw locking

• Degree of protection: IP67 locked condition

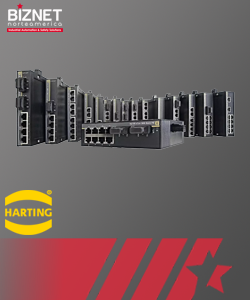

INDUSTRIAL ETHERNET SWITCHES

• The Ha-VIS eCon 3000 Series Unmanaged Ethernet Switches feature up to 10 Fast Ethernet ports and offer fast, cost-effective options for expanding or configuring network infrastructures. Full Gigabit switches are available with up to 7 ports for data-heavy applications. The narrow design of the switches also allows them to be placed on the rail with a very high load density. Thanks to the DIN rail integrated into the base, the switches can be installed in the field easily and quickly, thus saving time and money.
