CATEGORY:

INDUSTRIAL IMAGE PROCESSING

LEUZE Products

ESCÁNERES COMPACTOS

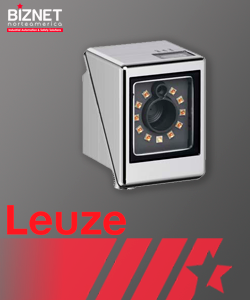

COMPACT SCANNER

Camera-based 1D/2D scanners read codes even while in motion and have a wide area of application. They can be used, e.g., in handling and automatic testing machines, in robot systems or in analysis automation. Another area includes applications where focus lies on part traceability using code labels.

DCR 248i FIX-L1-102-R3-V

Stationary 2D-code reader

Part no.: 50151587

• Design: Cubic

• Dimension (W x H x L): 46 mm x 61 mm x 46 mm

• Housing material: Stainless steel

• Stainless steel housing: V4A

• Lens cover material: Plastic

• Net weight: 392 g

• Housing color: Silver

• Type of fastening: Mounting thread, Via optional mounting device

• Compatibility of materials: ECOLAB

CAMARA INTELIGENTE

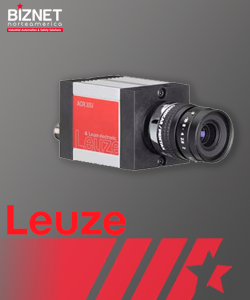

SMART CAMERA

The LSIS 400i smart cameras for industrial image processing can be integrated into the automation environment with little effort in terms of time and money. They are used in the areas of quality control, object detection and position determination, in the identification and monitoring of production processes. With their technically mature performance, the LSIS 400i cameras reliably solve even complex tasks.

ACR 368i C-102-3

Vision Sensor

Part no.: 50136500

• Dimensions (W x H x L): 45 mm x 45 mm x 65 mm

• Housing Material: Metal / Plastic Material

• Lens cover material: Plastic

• Net weight: 160 g

MEDICIÓN DE PERFILES

PROFILE MEASUREMENT

The LPS 36 profile camera determines height profiles of moving or static objects. An optional rotary encoder connection enables the output of calibrated 3D data. This solves numerous application problems, such as robot guidance or contour and volume determination. The short measurement time and large measurement range offer high flexibility. The compact device saves expensive installation space.

LPS 36.10

Line profile sensor

Part no.: 50138405

•Dimension (W x H x L): 56 mm x 160 mm x 74 mm

• Housing material: Metal / Plastic

• Metal housing: Aluminum

• Lens cover material: Plastic

• Net weight: 620 g
