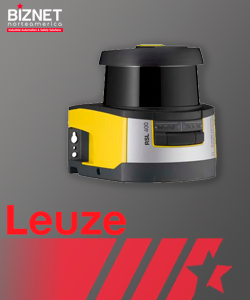

SAFETY LASER SCANNERS

Thanks to the configurable protective and warning fields, safety laser scanners can be used versatilely for danger zone and access guarding. Their compact design makes them ideal both for stationary and for mobile applications. Our RSL 400 safety laser scanners are characterized by their performance, robustness and easy handling. Thanks to its high operating range of 8.25 m and a scanning angle of 270°, it can monitor even large areas. The series also includes models for integration via PROFIsafe/PROFINET interface and models with data output for the navigation of automated guided vehicles.

RSL410-L/CU405-2M12

Safety laser scanner

Part no.: 53800207

• Dimension (W x H x L): 140.2 mm x 148.6 mm x 140.3 mm

• Housing material: Metal / Plastic

• Metal housing: Diecast zinc

• Lens cover material: Plastic/PC

• Net weight: 3,000 g

• Housing color: Yellow, RAL 1021

• Type of fastening: Mounting plate, Through-hole mounting, Via optional mounting device

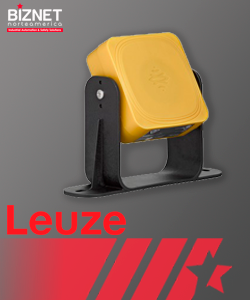

SAFETY RADAR SYSTEM

The world's first safe 3D radar system, LBK, was developed for the monitoring of hazardous areas in harsh industrial environments. It detects the bodies of persons and in doing so monitors the protected area for access and presence. Up to 6 sensors can be combined via one controller.

LBK S-01

Safety radar sensor

Part no.: 50143343

• Dimension (W x H x L): 165 mm x 123 mm x 49 mm

• Housing material: Plastic

• Plastic housing: PA 66

• Mounting bracket material: PA 66, glass fiber reinforced

• Net weight: 200 g

• Housing color: Yellow, RAL 1023

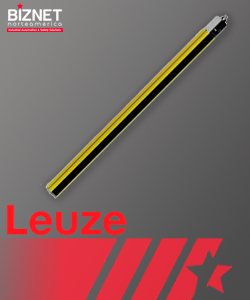

SAFETY LIGHT CURTAINS

Our safety light curtains are used wherever people and machines work "hand-in-hand." They ensure reliable safety – for finger and hand protection to safeguard points of operation or for access guarding at danger zones. At the same time, the devices meet the highest requirements with regard to easy integration and the availability of safeguarded systems.

MLC510R14-600

Safety light curtain receiver

Part no.: 68001106

• Dimension (W x H x L): 29 mm x 666 mm x 35.4 mm

• Housing material: Metal

• Metal housing: Aluminum

• Lens cover material: Plastic / PMMA

• Material of end caps: Diecast zinc

• Net weight: 750 g

• Housing color: Yellow, RAL 1021

• Type of fastening: Groove mounting, Mounting brackets, Mounting on Device Column, Swivel mount
