ULTRASONIC DISTANCE SENSORS

Ultrasonic distance sensors can reliably detect partially or fully transparent objects and perform precise distance measurements. In addition, measurements can be performed in dusty, hazy or humid environments. Versions are available either with plastic or metal housing.

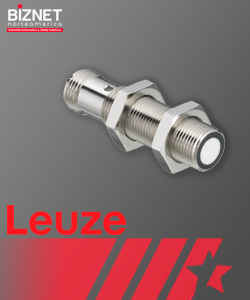

DMU412B-500/LCT-M12

Ultrasonic distance sensor

Part no.: 50150586

• Design: Cylindrical

• Dimension (Ø x L): 12 mm x 50 mm

• Thread size: M12 x 1 mm

• Housing material: Metal

• Metal housing: Nickel-plated brass

• Ultrasonic transducer material: Piezoceramics (contains lead zirconium titanate (PZT))

• Net weight: 32 g

• Housing color: Silver

SENSORS FOR POSITIONING

With moving system parts that need to automatically work together, the positioning of parts or work pieces with millimeter accuracy is of great importance. For this purpose, sensors with various operating principles are provided: laser distance measurement devices that measure against a reflector, bar code positioning systems whose red light laser determines position and speed relative to a bar code tape, sensors for optical guidance using edge detection as well as solutions for camera-based compartment fine positioning.

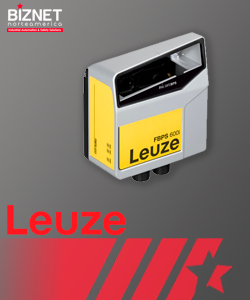

FBPS 617i 17 SM 110

Bar code positioning system

Part no.: 50144062

• Design: Cubic

• Dimension (W x H x L): 105 mm x 112.5 mm x 51.5 mm

• Housing material: Metal

• Lens cover material: Glass

• Net weight: 540 g

• Type of fastening: Dovetail grooves, Fastening on back, Mounting thread, Via optional mounting device
