CATEGORY:

OPTICAL DATA TRANSMISSIONS

Data within a network is transferred in different ways. Optical data transmission photoelectric sensors use the "air" medium to transfer data invisibly, contact-free and free from wear over a distance of up to 300 m. This is a leading technology in plant engineering and combines efficiency with cost effectiveness.

LEUZE Products

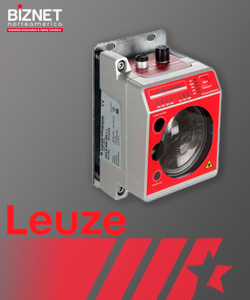

DDLS 500 CON TRANSMISIÓN DE DATOS A 100 MBIT/S EN TIEMPO REAL

DDLS 500 WITH 100 MBIT/S REAL-TIME TRANSMISSION

The DDLS 500 is a data transmission photoelectric sensor that, in addition to a high transmission rate of 100 Mbit/s, sets new standards – above all with respect to usability. An integrated alignment laser enables fast and precise mounting. Via the integrated web server, device diagnostics can be called up from any location.

DDLS 508 200.3 L H

Optical data transmission

Part no.: 50132935

• Dimension (W x H x L): 100 mm x 156 mm x 99.5 mm

• Housing material: Metal

• Net weight: 1,422 g

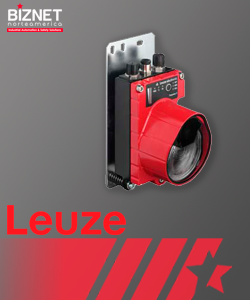

DDLS 200 CON 2 MBIT/S DE TASA DE TRANSMISIÓN

DDLS 200 WITH 2 MBIT/S TRANSMISSION RATE

Optical data transmission for RS interfaces and fieldbuses up to 300 m and up to 2 Mbit/s. Infrared data transmission protects the DDLS 200 from interference. Systems are available for all common industrial fieldbus interfaces. The ranges are stepped and reach a maximum transmission distance of 300 m. Low ambient light sensitivity through special FSK method. Available interfaces: PROFIBUS, Interbus and CAN/DeviceNet, as well as RS422 and RS 485.

DDLS 200/200.1-50-M12

Optical data transmission

Part no.: 50125767

• Dimension (W x H x L): 89.25 mm x 196.5 mm x 111.8 mm

• Housing material: Metal

• Net weight: 1,245 g
