CATEGORY:

ELECTRICAL MATS | ESD, ANTI-STATIC & SWITCHBOARD

NOTRAX Products

ALFOMBRILLAS ESD Y TAPETES ANTIESTÁTICOS

ELECTRICAL MATS | ESD, ANTI-STATIC & SWITCHBOARD

ESD mats and anti-static mats prevent static electricity build up to protect sensitive equipment and flammable products. They also protect from potential slips and falls.

Model no.: 826

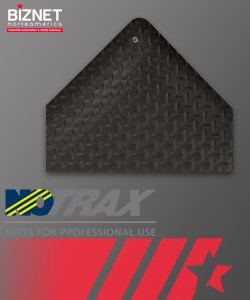

Black Anti-Static Mat, Non-Slip, Diamond Stat™, 826

Available colors: Black
Overall thickness: 9/16
Roll sizes: 2'x 75'; 3'x 75'; 4'x 75'
Custom lengths: 2', 3' and 4' widths (up to 75' long)
Standar sizes: 2'x 3'; 3'x 5'; 3'x 12'
Group: Ergonomic, Anti-fatigue & Safety Matting
Environment: Dry Areas

Special characteristics: Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals

Recommended use: For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations.

Special remarks: For maximum effectiveness, we highly recommend that the end-user properly attaches the grounding cord which is included at no charge. It easily snaps into a grommet which is installed in the mat at our factory.

Surface: Industrial Diamond Plate

Edges: Beveled edges on all sides

Usage intensity: Heavy duty

Custom description: Available in stock and rolls sizes and in custom lengths.

Installation: No installation required

Material specifications: Static dissipative PVC

Material specifications: Static dissipative PVC

Backing: Closed Cell Rubber

Weight Lbs/sqft: 1.3

TAPETE PARA TABLEROS ELÉCTRICOS

SWITCHBOARD MATS

Switchboard mats insulate workers in high-voltage environments. Using diamond-textured or corrugated material, switchboard matting is fire-retardant and rated up to 20,000 volts. It also provides solid traction and is easy to clean.

Model no.: 831

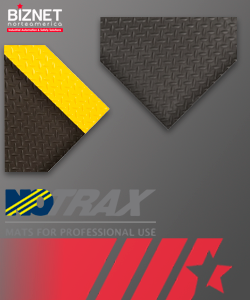

Diamond Switchboard Matting 831

Available colors: Black; Black/Yellow
Overall thickness: 1/4
Roll sizes: 2'x 75'; 3'x 75'; 4'x 75'
Custom lengths: 2', 3' and 4' widths (up to 75' long)
Group: Ergonomic, Anti-fatigue & Safety Matting
Environment: Dry Areas

Special characteristics: Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals|Recommended maximum usage: 17.000 Volts

Recommended use: Around electric sub-stations, transformers and switches, electrical panels, engine and generator rooms

Special remarks: It is highly recommended that the mat be replaced every 12 months for optimum performance

Surface: Industrial Diamond Plate

Edges: No borders

Usage intensity: Heavy duty

Material specifications: PVC (DOP free)

Weight Lbs/sqft: 1.7
