MOTION CONTROL SYSTEMS

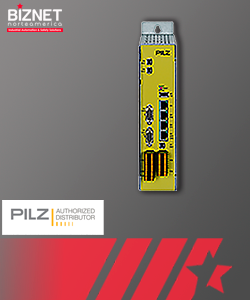

PMCprimo MC.C/16DIDO/2

Product ID: 680080

Motion control system in housing; Bus systeme standard: EtherCAT, CANopen, Profibus; Communication: EtherNet, USB; Hardware: CPU 1,3 GHz, 3 Encoder inputs, 16 digital inputs, 16 digital outputs; Software option: none.

With Pilz servo amplifiers you have flexible drive controllers, which you can use with all common types of motor.

SERVO AMPLIFIER

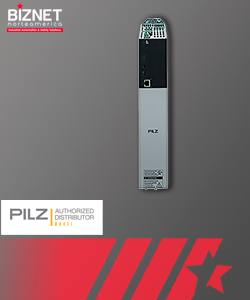

PMC SI6A162Z/EC 2x 12A

Product ID: 8C000035

Technical data at 3 x 400 V AC: Nominal output current: 2x 12 A @ 4kHz / 2x 10 A @ 8kHz. Imax: 210% for 2s / 250% for 2s. Apparent power: 2x 8.3 KVA. Without brake resistor. Option: Without Safety module technology, with EtherCat.

SERVO MOTORS

Regardless of whether your focus is on dimensions, dynamics, controllability or the feedback system. We offer compact, performance-optimised servo motors, compatible with our servo amplifiers.

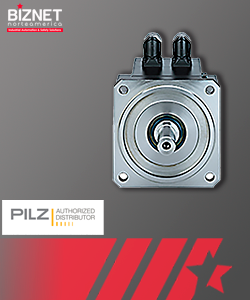

PMCtendo SZ.75/0/1/2/7/K/H/30/00

Product ID: 8177016

Mo = 30.2 Nm Io = 19.5 A UN = 400 V nN = 3000 min-1 Jmot = 34.0 kgcm2 Encoder ECI 1118 EnDat2.2 single-turn; without brake.
