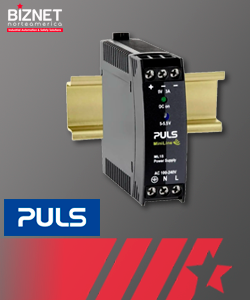

DIN RAIL POWER SUPPLIES FOR 1-PHASE SYSTEM

ML15.051

DIN rail power supplies for 1-phase system

5 V, 3 A

DC output: 5 - 5.5 Vdc / 3 - 2.7 A / 15 W
Input: AC 100 - 240 V (-15 %/+10 %) / DC 110 V - 300 V (-20 %/+25 %)
Dimensions (WxHxD): 23 x 75 x 91 mm
Weight: 130 g

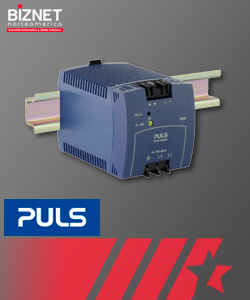

DIN RAIL POWER SUPPLIES FOR 3-PHASE SYSTEM

ML90.200

DIN rail power supplies for 3-phase system

24 V, 3.8 A

NEC Class 2
DC output: 24 - 28 Vdc / 3.8 - 3.2 A / 90 W
Input: AC 380 - 480 V (± 15 %)
Dimensions (WxHxD): 73 x 75 x 103 mm
Weight: 360 g

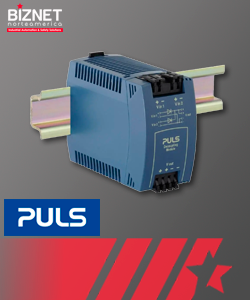

DIODE REDUNDANCY MODULE

MLY02.100

Diode redundancy module

24 V, 10 A

2x 5A input
DC output: 12 - 48 Vdc / 10 A
Input: DC 12 V - 48 V (± 25 %)
Dimensions (WxHxD): 45 x 75 x 91 mm
Weight: 140 g

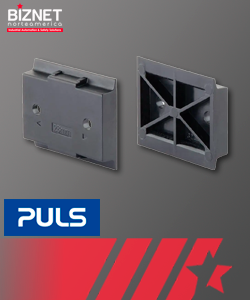

WALL / PANEL MOUNT BRACKET

ZM3.WALL

Wall / panel mount bracket

for 45mm wide MiniLine units; 25 pcs
Dimensions (WxHxD): 45 x 35 x 7 mm
Weight: 25 g
