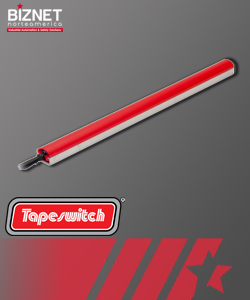

TS-6 SENSING EDGES

Tapeswitch™ TS-6 Mini Sensing Edges are designed for limited space applications requiring a high sensitivity, pressure sensitive safety edge. The TS-6 sensing edges differ mainly in height and sensitivity from the TS-16. The TS-6 is 0.63 inch high and requires 1.5 pounds to activate. This pressure sensitive sensing edge has a PVC housing, which is resistant to water, oil, hydraulic fluids, and coolants. The internal switching elements are rated for millions of operations across surface. They mount in snap-in channel that is available in two configurations: flat (aluminum or PVC) or with a right-angle mounting edge (aluminum only). All TS-6 pressure sensitive safety edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

• Actuation Force: 20 N (71.9 oz.) nominal (Tested with 80 mm disk)

• Overtravel: 0.04 in. (1 mm) after activation

• Overall Height: 0.63 in. (16.1 mm)

• Recommended Voltage & Current: 28 VAC or VDC at 1.0 amps max.

• Lead Wiring: 2 x 22/2 AWG, 4-conductor Fail-Safe, 18 in. long

• Exterior Housing: PVC

• Available Lengths: 6 in. to 16 ft.

• Mounting Options: Aluminum channel (flat or angled) snap-in PVC channel (flat only) snap-in (black)

• Color Options: Black, Red & Yellow

BORDES DE DETECCION

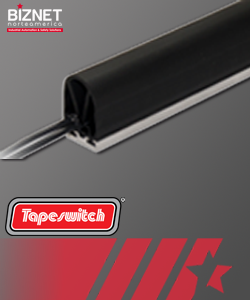

TS-46 SENSING EDGES

Tapeswitch™ TS-46 Sensing Edges are general purpose, medium profile, pressure sensitive safety edges. They have some compliance before activation, eliminating nuisance tripping, and provide about ¾ inch of overtravel cushioning after activation. Mounting is in crimpable aluminum channel (flat or angle), which is more tamper-resistant than snap-in channel. The Santoprene TPE housing is resistant to water, oil, hydraulic fluids, and coolants. The internal switching element is rated for millions of operations across surface. All TS-46 Pressure Sensitive Sensing Edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

• Actuation Force: 39 N (140.3 oz.) nominal (Tested with 80 mm disk)

• Overtravel: 0.75 in. (19 mm) after activation

• Overall Height: 1.97 in. (49.9 mm)

• Recommended Voltage & Current: 28 VAC or VDC at 1.0 amps max.

• Lead Wiring: 2 x 20/2 AWG, Dri-Run, 72 in. long, 3⁄16 in. dia.

• Exterior Housing: Santoprene TPE

• Available Lengths: 6 in. to 16 ft.

• Mounting Options: Aluminum crimpable channel (flat or angle)

• Color Options: Black, Red & Yellow
