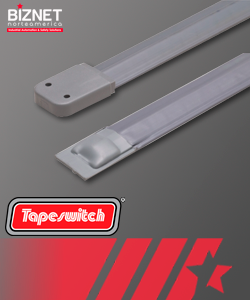

RIBBON SWITCH TYPE 131

General purpose ribbon switches designed for activation by hand, foot, or mechanical device. Available with sleeve ends or with block ends that have mounting holes (MT types). Block ends can have wire exiting from the end or back.

• Actuation Force: 60 oz. (17 N) (10 mm Sphere)
• Bending Radius: 1 in. (25 mm) minimum for Type 131
• Exterior Covering: PVC
• Color: Light Grey
• Lead Wire: #18 AWG, 18 in. (460 mm) long (Standard)
• Dimensions: 3/4 in. wide, 3/16 in. high (19.1 mm x 4.8 mm )
• Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
• Resistencia dieléctrica: 1000 VAC durante 2 minutos.
• Dielectric Resistance: 1000 VAC for 2 minutes.
• Length is cut to customer requirements.

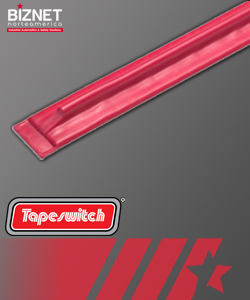

RIBBON SWITCH TYPE 141-BPH

General purpose ribbon switches designed for activation by hand, foot, or mechanical device. These switches have a PVC exterior.

• Actuation Force: 24 oz. (7 N) (10 mm Sphere)
• Bending Radius: 1/2 in. (12 mm) minimum
• Exterior Covering: PVC (standard) or TPE (optional)
• Color: White, Red, or Black
• Lead Wire: #22 AWG, 18 in. (460 mm) long (Standard)
• Dimensions: 9/16 in. wide, 9/32 in. high (14.3 mm x 7.1 mm)
• Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
• Dielectric Resistance: 1000 VAC for 2 minutes
Mounting is by aluminum channel or double-faced tape.
Length is cut to customer requirements.

RIBBON SWITCH TYPE 141-BPM

General purpose ribbon switches designed for activation by hand, foot, or mechanical device. These switches have a PVC exterior.

• Actuation Force: 8 oz. (2 N)
• Bending Radius: 1/2 in. (12 mm) minimum
• Exterior Covering: PVC (standard) or TPE (optional)
• Color: white
• Lead Wire: #22 AWG, 18 in. (460 mm) long
• Dimensions: 9/16 in. wide, 7/32 in. high (14.3 mm x 5.5 mm)
• Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
• Dielectric Resistance: 1000 VAC for 2 minutes
Mounting is by aluminum channel or double-faced tape.
Length is cut to customer requirements.
