CATEGORY:

SAFETY MAT PRODUCTS

TAPESWITCH Products

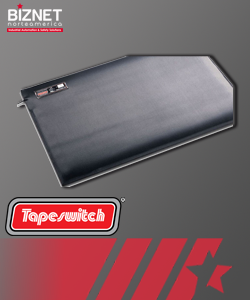

SAFETY CONTROLMAT™

SAFETY CONTROLMAT™ - HEAVY-DUTY AND ABRASION-RESISTANT

Tapeswitch™ Controlmat™ Industrial Duty Safety Mats are designed for personnel sensing around dangerous machinery and in hazardous locations. These pressure sensitive switch mats feature press-at-any-point actuation. Many standard sizes are in stock, but custom sizes and shapes are easily manufactured to order with short lead times. Tapeswitch™ Safety Mats can also be made with cut-outs and multiple sensing zones to exactly fit specific application needs.

• Actuation Force: 22 lbs (100 N) nominal with 3-1/8 in. (80 mm) diameter disc

• Recommended Voltage & Current: 24 VAC or VDC at 1 amp max

• Environment: IP65 rated, 32 to 122°F (0 to 50°C)

• Colors: Black (standard), yellow or blue (optional)

• Maximum Size: Up to 48 in x 144 in. single-piece construction.

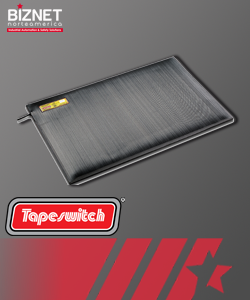

ARMORMAT™

ARMORMAT™ SAFETY MATS - EXTREMELY PUNCTURE-RESISTANT

Tapeswitch™ ArmorMat™ Industrial Safety Mats are designed for personnel detection under conditions that are not suitable for conventional safety mat products. They incorporate an impact-resistant, penetration-resistant barrier that easily withstands abuse that would destroy ordinary pressure sensitive safety mats.
Many standard sizes are available. Custom sizes and shapes can be manufactured to order with short lead times.
Armormat™ extra heavy-duty switch mats are highly durable and withstand abuse such as repeated gouging by dropped sheet metal, piercing by sharp objects, and continual pounding by heavy work pieces.
The Armormat™ safety mat design safeguards against failure with an impact-resistant barrier that protects a separate moisture-resistant compartment containing the switching elements.

• Actuation Force: 22 lbs (100 N) nominal with 3-1/8 in. (80 mm) diameter disc

• Recommended Voltage & Current: 24 VAC or VDC at 1 amp max/p>

• Environment: IP65 rated, 32 to 122°F (0 to 50°C)

• Colors: Black (standard), yellow or blue (optional)

• Maximum Size: Up to 48 in x 192 in. single-piece construction
