CORDSETS

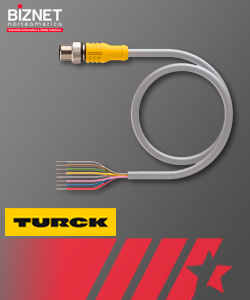

Product RSC 8T-x

Actuator and Sensor Cable
Connection Cable

Ident. no.: 777000186

• M12, Male, Straight, 8-pin

• General Purpose Cable

• Gray PVC jacket, 8X24 AWG

• -40 Cold Bend Rating

• Flame Ratings: UL1061, CSA FT1

RECEPTACLES

Product FK46PT-1/M16

M12 Power Receptacle
Front Mount

Ident. no.: U2-28492

• M12, Female, 4-pin, T-Code

• Mounting thread: M16 x 1.5

SPLITTERS

Product XSH-RSM-2RKM 50

2-Way Splitter
Small h body
5-Wire

Ident. no.: U2-23667

• 7/8" connector

• Male – 2 x female, 5-pin

• Wired in parallel

• cULus listed

• RoHS-compliant

• Protection class: NEMA 1, 3, 4, 6P and IEC IP67

• 7/8” Male, Straight, 5-pin

• 2x 7/8”, Female, Straight, 5-pin

FIELD WIREABLE CONNECTORS

Product FW-EWSPM0426-SA-P-0408

Field-Wireable Connector
Male Connector M12 × 1, Angled

Ident. no.: 100009887

• Push-in connection

• A-coding

• 4-pin

• Flammability class acc. to UL 94 V0

• Cable feedthrough: 4.0…8.0 mm

• Terminal capacity:
0.14…0.75 mm² (without cable end sleeve)
0.08…0.5 mm² (with cable end sleeve)

• Approval: cULus

• RoHS compliant

• Protection class: IP65, IP67

BULK CABLE

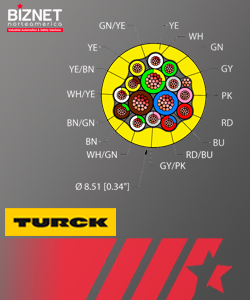

Product YEL,PVC,3X18+12X22,S-DF,ITC,MSHA

Instrumentation Tray Cable
Reelfast™ Bulk Cable

Ident. no.: RF50625

• Instrumentation Tray Cable

• Yellow PVC jacket, shielded, 3X18+12X22 AWG

• Sunlight Resistant

• -40 Cold Bend Rating

• Oil Resistant

• Flame Ratings: UL 1685 FT4, UL1061, CSA FT4

• ITC 150V

• PLTC 300V

• UL/CSA AWM 300V

• CMX OUTDOOR 300V

• CMG 300V

CONNECTIVITY
