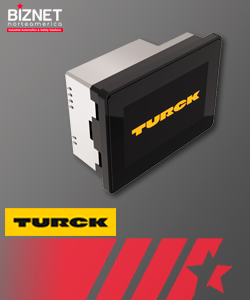

PROGRAMMABLE HMI

Product TX705-P3CV01

• 5" TFT wide screen color display

• LED backlight

• 800 x 480 pixel resolution

• 64 K colors

• Capacitive touchscreen with glass front

• 2 separated RJ45 Ethernet ports with 10/100 Mbit

• 1 serial interface (RS232, RS485, RS422)

• 1 USB host port

• 1 SD card slot

• 1 expansion module slot

• CODESYS V3 PLC Runtime

• CODESYS OPC UA server/client

• IIoT gateway for Turck Cloud

• PROFINET device

• EtherNet/IP device

• Modbus TCP master/slave

• Protection class IP67

• LEDs for display of PLC status, supply voltage, group and bus faults

• 2 × M12 Ethernet, 4-pin, D-coded

• Switched or dual MAC mode

• 10 Mbps/100 Mbps

• 7/8″ male connector for power supply, 5-pin
